Break up UI.h into respective class files #43

New Issue
Closed
opened 2024-03-09 19:41:50 +00:00 by john · 5 comments
john commented 2024-03-09 19:41:50 +00:00
Owner
Copy Link

Notes say:
60 refactor: break up UI.h into the various objects

  • UIDrawable
  • UIGrid - could probably excuse GridPoint living here (?)
  • UIEntity - could probably excuse GridPointState living here (?)
  • UIFrame, UICaption, UISprite files

UI<thingy>.h should include all the python interface method definitions, C++ class definitions, and PyTypeObject.
UI.h will import all of these. This is in turn imported by the rest of the McRogueFace project
The static Type Objects that the module needs to import can be defined in the separate UI files, but inside the mcrfpydef namespace.
UICommon.h and UICommon.cpp can define the shared data type handlers created for #11, #13, #18

Notes say: 60 refactor: break up UI.h into the various objects * UIDrawable * UIGrid - could probably excuse GridPoint living here (?) * UIEntity - could probably excuse GridPointState living here (?) * UIFrame, UICaption, UISprite files `UI<thingy>.h` should include all the python interface method definitions, C++ class definitions, and PyTypeObject. `UI.h` will import all of these. This is in turn imported by the rest of the McRogueFace project The static Type Objects that the module needs to import can be defined in the separate UI files, but inside the `mcrfpydef` namespace. `UICommon.h` and `UICommon.cpp` can define the shared data type handlers created for #11, #13, #18
john added the
Major Feature
Refactoring & Cleanup
 labels 2024-03-09 19:41:50 +00:00
john added this to the All Datatypes Behaving milestone 2024-03-13 13:02:15 +00:00
john added this to the The Datatype Overhaul project 2024-03-13 13:06:39 +00:00
john added spent time 2024-04-09 15:05:39 +00:00
2 hours
john commented 2024-04-10 02:49:31 +00:00
Author
Owner
Copy Link

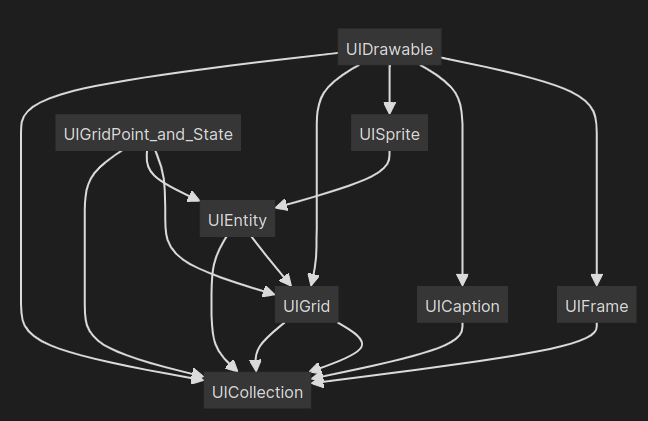

LOTS of new files. Disentangling these things is not hard, but there's a lot to do.

After it actually compiles again, which should be tomorrow, I'll make ANOTHER pass and make each file more idiomatic. The main task there will be renaming methods and using classes as namespaces for the pile of static methods. That should get each header file to be a lot shorter.

As a THIRD pass to fix up these files, the imports are excessive. I should remake the chart above with references to the SFML wrapper classes (Vector, Color, Texture, Font) and streamline the files to actual dependencies.

Compilation time should go down quite a bit when connections between the files are minimized and 80% of the UI classes aren't modified in any given revision.

![image](/attachments/fb812405-2e75-42aa-a9a9-978882376c01) LOTS of new files. Disentangling these things is not hard, but there's a lot to do. After it actually compiles again, which should be tomorrow, I'll make ANOTHER pass and make each file more idiomatic. The main task there will be renaming methods and using classes as namespaces for the pile of static methods. That should get each header file to be a lot shorter. As a THIRD pass to fix up these files, the imports are excessive. I should remake the chart above with references to the SFML wrapper classes (Vector, Color, Texture, Font) and streamline the files to actual dependencies. Compilation time should go down quite a bit when connections between the files are minimized and 80% of the UI classes aren't modified in any given revision.
40 KiB
john added spent time 2024-04-10 02:49:47 +00:00
1 hour 40 minutes
john added spent time 2024-04-11 03:10:38 +00:00
2 hours
john commented 2024-04-11 03:13:04 +00:00
Author
Owner
Copy Link

see c186d8c7f3

I have approximately 4 things I want to do to all of these new objects:

  1. Move implementations to .cpp file; rename as UIWidget::init, etc.
  2. use mcrfpy internally (like Texture) to find classes; no refs to mcrfpydef:: type objects
  3. eliminate unnecessary includes - these are tangling up the compilation process.
  4. Fix init functions - send args to constructors of SFML wrapper types

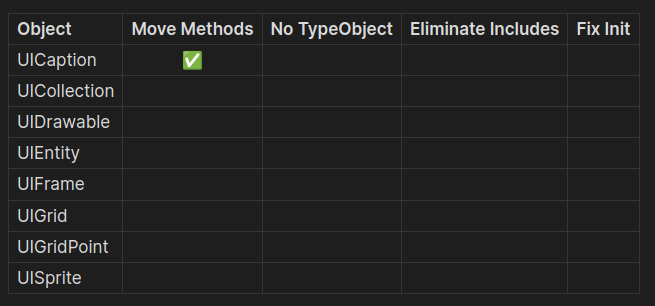

Here is a progress diagram of completing those actions:

I'll pick up when I have some free time again by continuing with UICaption's cleanup.

edit: regarding item 2 here. I don't think it would take a ton of time to implement. But is it necessary?
On the Python Discuss thread about my issues with building objects while the interpreter is still starting up, I said:

The module object and type objects I provided to initialize the module do not seem to be the same objects in use at the REPL. Maybe PyType_Ready copies the PyTypeObject struct somewhere else to apply defaults / inheritance?

I don't actually believe that, and I'm considering trying out the use of type objects in PyTexture again. All of the UI objects are compiling without the workarounds, so I suspect that I have some unnecessary steps in my process because I didn't reverse all of my experiments when figuring out what was wrong with Python object creation.

see c186d8c7f301f216f46ea52c92d60d15615c45ff I have approximately 4 things I want to do to all of these new objects: 1) Move implementations to .cpp file; rename as `UIWidget::init`, etc. 2) use mcrfpy internally (like Texture) to find classes; no refs to `mcrfpydef::` type objects 3) eliminate unnecessary includes - these are tangling up the compilation process. 4) Fix init functions - send args to constructors of SFML wrapper types Here is a progress diagram of completing those actions: ![image](/attachments/39f6e53d-784a-4bc9-a01a-fc874314120b) I'll pick up when I have some free time again by continuing with UICaption's cleanup. *edit:* regarding item 2 here. I don't think it would take a ton of time to implement. But is it necessary? On the [Python Discuss thread](https://discuss.python.org/t/instantiating-python-objects-from-c-segfault-on-type-obj-class-attribute-missing/50432/4) about my issues with building objects while the interpreter is still starting up, I said: > The module object and type objects I provided to initialize the module do not seem to be the same objects in use at the REPL. Maybe PyType_Ready copies the PyTypeObject struct somewhere else to apply defaults / inheritance? I don't actually believe that, and I'm considering trying out the use of type objects in PyTexture again. All of the UI objects are compiling without the workarounds, so I suspect that I have some unnecessary steps in my process because I didn't reverse all of my experiments when figuring out what was wrong with Python object creation.
26 KiB
john commented 2024-04-11 03:21:10 +00:00
Author
Owner
Copy Link

while fixing __iter__ for this issue, I may end up accomplishing the work for #56 as well.

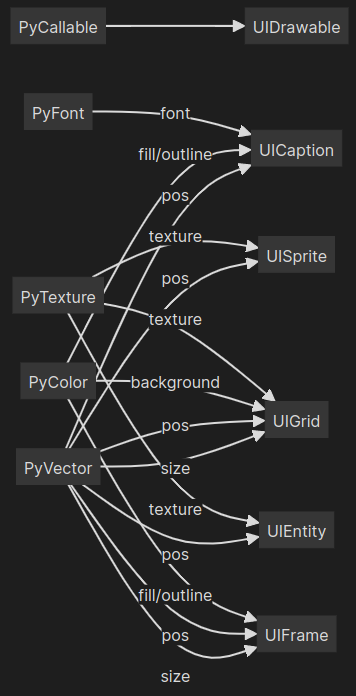

Chart of properties to implement:


These should all work at init time, and they should all accept either a mcrfpy object of the correct type, or a tuple that satisfies that object's constructor.

while fixing `__iter__` for this issue, I may end up accomplishing the work for #56 as well. Chart of properties to implement: ![image](/attachments/26ef908c-e355-4be5-b001-58b11393ed4e) These should all work at init time, and they should all accept either a mcrfpy object of the correct type, or a tuple that satisfies that object's constructor.
65 KiB
john commented 2024-04-13 04:19:30 +00:00
Author
Owner
Copy Link

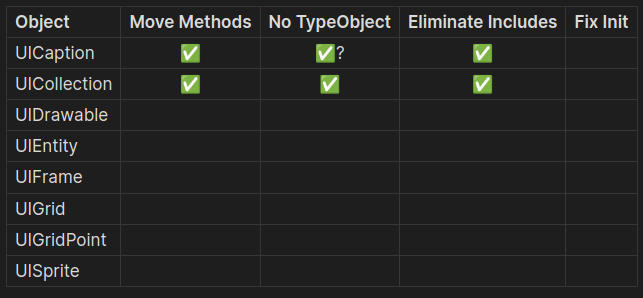

I'm getting some segfaults from using the TypeObjects directly, so I guess I'll proceed with that fix.

![image](/attachments/bd61f4c8-2f51-4ba7-b422-31e52620ad4f) I'm getting some segfaults from using the TypeObjects directly, so I guess I'll proceed with that fix.
29 KiB
john added reference break_up_ui_h 2024-04-20 00:22:00 +00:00
john commented 2024-04-20 01:45:56 +00:00
Author
Owner
Copy Link

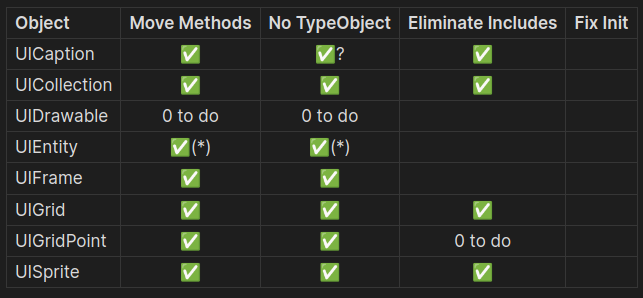

Ready to merge (?)

cos_play has segfaults, which I may want to fix before wrapping this issue... I am rushing to meet the April 21st deadline, now.

![image](/attachments/abc1e70b-8431-40be-ac00-9568f588f605) Ready to merge (?) `cos_play` has segfaults, which I may want to fix before wrapping this issue... I am rushing to meet the April 21st deadline, now.
42 KiB
john added spent time 2024-04-20 01:46:19 +00:00
3 hours 15 minutes
john closed this issue 2024-04-20 14:34:10 +00:00
